Choosing the right Electrical Wire Cable configuration is just as important as selecting the proper conductor material or voltage rating. One of the most common decisions engineers, contractors, and purchasing managers face is whether to use bundled (multi-core) cables or single-core cables. Each configuration offers distinct advantages depending on the installation environment, electrical load, flexibility requirements, and maintenance considerations.

Understanding the differences between these cable types can improve system performance, simplify installation, and reduce long-term operating costs. As a trusted manufacturer, Biaobang provides premium electrical wire and cable solutions designed to meet the diverse needs of residential, commercial, industrial, and infrastructure projects.

What Is an Electrical Wire Cable?

An Electrical Wire Cable consists of one or more insulated conductors enclosed within a protective sheath. Depending on the application, cables may contain a single conductor or multiple conductors bundled together inside one outer jacket.

The two primary configurations are:

· Single-core cable

· Bundled (multi-core) cable

Selecting the right option depends on electrical, mechanical, and environmental requirements.

Understanding Single-Core Electrical Wire Cable

A single-core cable contains one insulated conductor surrounded by protective insulation and, in some cases, an outer sheath.

Advantages of Single-Core Cables

Single-core cables offer several benefits.

Excellent Current-Carrying Capacity

Since heat dissipates more efficiently from a single conductor, single-core cables are well suited for carrying high electrical currents.

This makes them ideal for:

· Power distribution

· Industrial machinery

· Utility installations

· Renewable energy systems

Greater Installation Flexibility

Individual cables can be routed separately, allowing installers to adapt to complex layouts or confined spaces.

This flexibility is especially useful in:

· Cable trays

· Electrical panels

· Large switchgear systems

Easier Heat Dissipation

With fewer conductors enclosed together, heat buildup is minimized, improving operating efficiency and extending cable lifespan.

Simple Replacement

If one conductor becomes damaged, only the affected cable needs replacement instead of an entire multi-core assembly.

Common Applications of Single-Core Cables

Single-core Electrical Wire Cable products are commonly used in:

· Main power distribution

· Industrial control panels

· Solar photovoltaic systems

· High-current motor connections

· Substations

· Underground transmission systems

These applications often require high current capacity and efficient heat management.

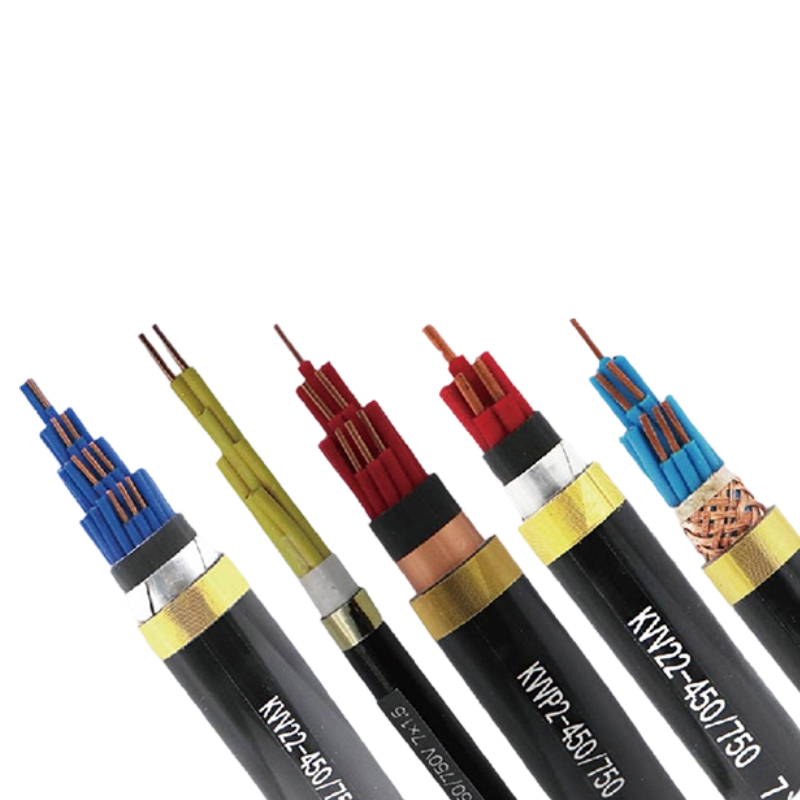

Understanding Bundled (Multi-Core) Electrical Wire Cable

Bundled cables contain two or more insulated conductors enclosed within a single outer jacket.

Depending on the application, they may include:

· Two-core cables

· Three-core cables

· Four-core cables

· Five-core cables

· Multi-core control cables

The conductors remain individually insulated while sharing a common protective sheath.

Advantages of Bundled Electrical Wire Cable

Simplified Installation

Instead of routing several individual conductors, installers can pull a single cable containing multiple circuits.

Benefits include:

· Faster installation

· Reduced labor costs

· Improved cable organization

· Cleaner installations

Better Mechanical Protection

The outer jacket protects all conductors from:

· Abrasion

· Moisture

· Dust

· Chemicals

· Mechanical damage

This makes bundled cables particularly suitable for demanding environments.

Reduced Installation Space

Multiple conductors inside one cable require less conduit or tray space compared with several separate single-core cables.

This is especially valuable in commercial buildings and industrial control systems.

Improved Circuit Identification

Conductors are usually color-coded or numbered, making installation, maintenance, and troubleshooting easier.

Common Applications of Bundled Cables

Bundled Electrical Wire Cable products are widely used in:

· Residential wiring

· Commercial buildings

· Building automation systems

· HVAC equipment

· Elevators

· Industrial control systems

· Instrumentation

· Manufacturing equipment

These applications often require multiple conductors operating together.

Single-Core vs Bundled Cable: Key Differences

Installation Complexity

Single-core cables require multiple individual installations for multi-phase systems.

Bundled cables combine several conductors into one assembly, significantly simplifying installation.

Current Capacity

Single-core cables generally handle higher currents because they dissipate heat more effectively.

Bundled cables may require current derating when multiple conductors generate heat inside the same jacket.

Maintenance

Single-core installations allow individual conductor replacement.

Bundled cables typically require replacing the complete cable if one conductor becomes severely damaged.

Mechanical Protection

Bundled cables provide greater overall protection because all conductors are enclosed within a durable outer sheath.

Single-core cables often require additional conduit or protective tubing in harsh environments.

Cost Considerations

Project costs vary depending on installation requirements.

Single-core cables may reduce material costs in high-power installations but require additional labor during installation.

Bundled cables often reduce labor costs through quicker installation and simpler cable management.

Factors to Consider When Choosing an Electrical Wire Cable

Selecting the right cable configuration requires evaluating several important factors.

Electrical Load

High-current applications generally benefit from single-core cables because of superior heat dissipation.

Control circuits and low-current systems often perform better with bundled cables.

Installation Environment

Consider whether the cable will be installed:

· Indoors

· Outdoors

· Underground

· In cable trays

· Inside conduits

· In hazardous industrial environments

Environmental conditions influence both cable construction and jacket material selection.

Available Installation Space

Projects with limited conduit or tray capacity often benefit from bundled cable designs that reduce overall cable volume.

Future Maintenance

Facilities expecting frequent modifications or expansions may prefer single-core installations because individual conductors can be replaced more easily.

Regulatory Compliance

Always ensure the selected Electrical Wire Cable complies with applicable electrical codes and international standards for the intended application.

Why Choose Biaobang Electrical Wire Cable?

Choosing a reliable manufacturer is essential for ensuring product quality and long-term system reliability.

Biaobang manufactures premium Electrical Wire Cable solutions for residential, commercial, industrial, and infrastructure applications. Using high-quality raw materials, advanced production equipment, and rigorous quality control procedures, Biaobang delivers cables that provide excellent electrical performance, durability, and safety while meeting international standards.

Whether your project requires high-current single-core power cables or flexible multi-core control cables, Biaobang offers customized solutions tailored to your technical and operational requirements.

Conclusion

Both single-core and bundled Electrical Wire Cable configurations play essential roles in modern electrical systems. Single-core cables excel in high-current applications where efficient heat dissipation and easy maintenance are priorities. Bundled cables offer simplified installation, improved cable organization, and enhanced mechanical protection for applications requiring multiple conductors.

By evaluating factors such as electrical load, installation environment, maintenance requirements, available space, and regulatory compliance, you can confidently select the most suitable cable configuration. Partnering with an experienced manufacturer like Biaobang ensures access to high-quality electrical wire and cable solutions that deliver dependable performance, safety, and long-term value for projects around the world.
