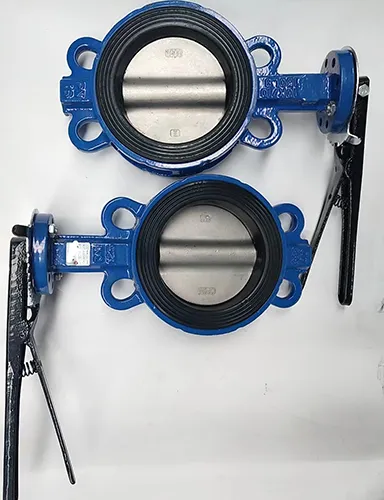

How to Choose Between Pin-Operated and Pinless Butterfly Valves

Key Factors for Selection Butterfly Valves

1. Pressure & Temperature:

- Pinned (with pin): Suitable for low-pressure, low-temperature systems (e.g., water supply, HVAC).

- Pinless (without pin): Ideal for high-pressure, high-temperature applications (e.g., oil/gas, chemical processing).

2. Sealing Requirements:

- Pinned: May risk leaks at the pin hole; use where minor leakage is acceptable.

- Pinless: Offers zero-leakage sealing; critical for hazardous or sensitive media.

3. Budget:

- Pinned: Lower initial cost for tight budgets.

- Pinless: Higher upfront cost but longer lifespan and reduced downtime.

4. Maintenance:

- Pinned: Easier to repair/replace parts (pin and disc accessible).

- Pinless: Requires specialized tools and skills; better for systems needing minimal maintenance.

5. Flow Efficiency:

- Pinless: Smoother flow due to no pin obstruction; preferred for high-efficiency systems.

Quick Decision Guide

Summary: Match valve type to your system’s pressure, temperature, budget, and sealing needs. Pinless valves excel in demanding environments, while pinned valves are economical for simpler setups.
